Guide P120V Thermal Camera

Name: Guide P120V Thermal Camera
Brand: Guide
SKU: GUIP120V
Price: 311.78 EUR
Availability: InStock

Article No.:

GUIP120V

Entry level pocket size for industrial purposes

Thermal sensor:

120x90 17μm

Thermal sensor NETD:

60 mK

Magnification interval (x):

1 – 8

User's Guide (HUN):

Hungarian version

Thermal sensor:

120x90 17μm

On stock

338.91 EUR

311.78 EUR

Saving 27.13 EUR

Details

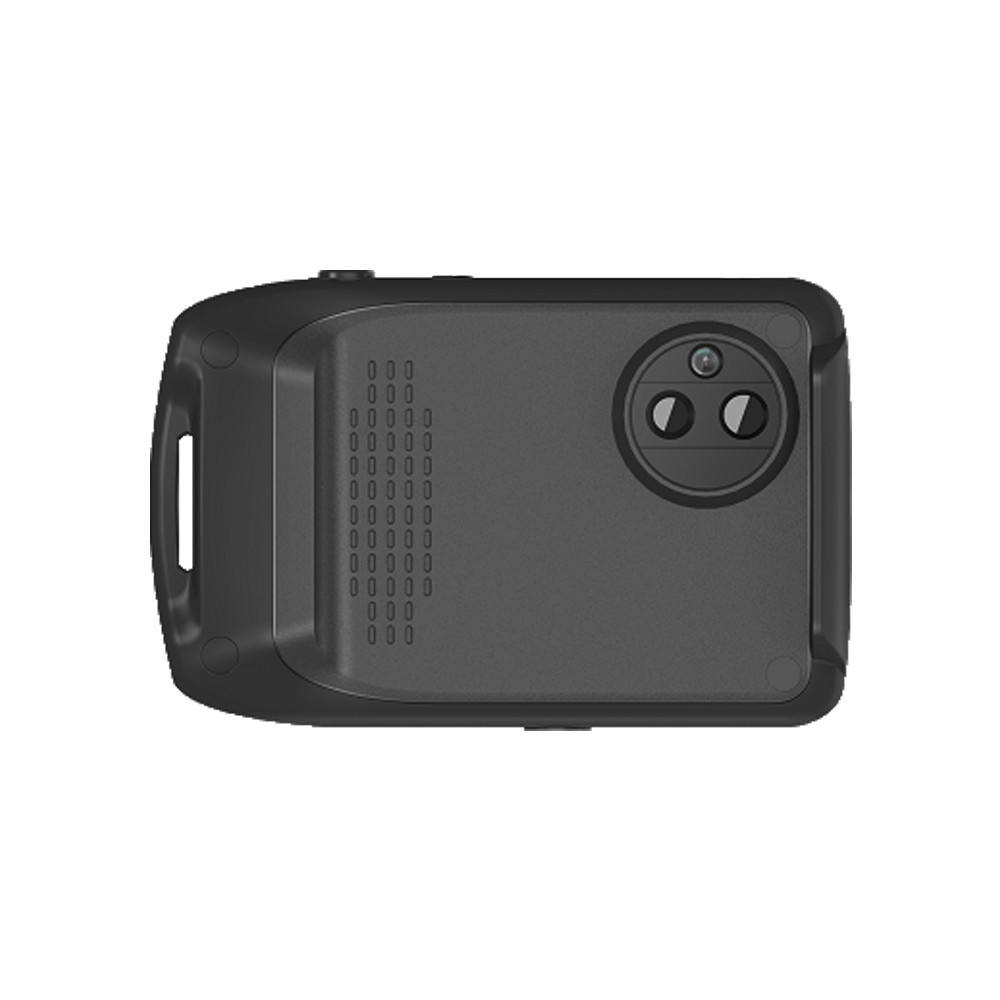

Pocket-sized Thermal Camera P120V Pocket-sized Thermal Camera designed for electrical equipment maintenance and building inspection, which can fast detect the potential problems, report repair data and share images by Wi-Fi. It is a truly handy thermal camera that fits in your pockets for fast and accurate thermal inspections anytime. P120V featured with 3.5-inch LCD touchscreen for simple operation, and support picture-in-picture, smooth zoom, max and min temperature alarm, Cloud Service and more. 120x90IR resolution -20℃~400℃Measurement Range 15HzFrame Rate IP54Encapsulation

• -20℃-400℃ wide measurement range Auto switching between-20℃-150℃ and 100℃-400℃ • Reasonable Layout and Good Ergonomic Design No interfere between lens area and grip area

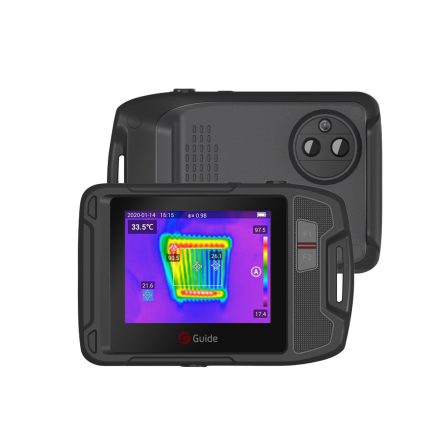

• 3.5” Touchscreen Display High-brightness LCD, 320 x 240 pixels • Android Platform, Intelligent Operation User-friendly design based on Android system, which is as simple as using a smartphone.

• Wi-Fi connectivity , support Cloud Service Wi-Fi connectivity enabled for remote control and instant sharing. And support Cloud Album, you can back up the images to the Cloud in real-time.

Info

Article number:

GUITP120V

Data storage:

4 GB built-in memory, up to 500 pictures

Plugs:

USB-C, charging and data transfer

Digital zoom:

Other properties:

Color palettes: White Hot, Iron Red, Hot Iron, Hot Iron, Arctic, Rainbow 1, Rainbow 2
Settings: temperature format, date and time format
Modes: thermal image, visible image, image in image, MIF (a combination of the two images)
Battery can be charged in up to 1.5 hours
Auto power off, sleep mode
maximum humidity <95%
Certificates: CE, FCC, ROHS

Energy supply:

built-in, rechargeable Li-ion battery

Type:

Nagy kijelzős kereső

Video recording:

Manufacturer:

Guide

Warranty:

2 years manufacturer's warranty

Type:

Handheld camera

IFOV:

7.6 mrad

Image repetition frequency:

25 / 9 Hz

Display:

320x240 pixel 3.5'',TFT

Screen color modes:

6 color modes

Field of view (°):

50°x38°

Least magnification:

Utmost magnification:

Sizes:

133x87x24 mm

Measurement properties:

Temperature ranges: -20°C - 400°C
Accuracy: +/- 2°C, or +/- 2% 15 and 30 For ambient temperatures between °C, for object temperatures above 0°C
Operating modes: central, (1 movable), area (1 movable)
Measurement: central, 3 areas
Full screen, automatic min . and max. temperature tracking

Working / storage temperature:

-10 - +50 / -40 - +70°C

Magnification:

Lens:

2.28 mm, F1.13, fix focus

Old article number:

GUIP120V

Spectral range:

7.5 - 14 μm

Sensor:

120x90 pixel uncooled VOx UFPA microbolometer , 17 μm pixel size, NETD: 60 mK,

Color:

grey

In the box:

camera, wrist strap, battery charger, USB-C cable, user's manual

Supported photo resolutions:

.jpeg 120x90, 320x240 CMOS

Supported video resolutions:

Weight (g):

240

Shock resistance:

up to a drop from a height of 1 m

Operating time:

more than 2 hours (without WiFil)

Water resistance:

IP54

Product type:

Thermal camera, Nightvision

When do I get it?:

Already on its way

EAN code:

6970883550067

Type:

Handheld camera
